Product Description

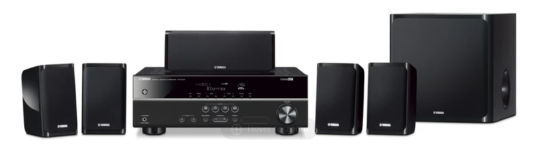

Realize the home theatre setup you've been dreaming of with the YHT-1840 5.1-channel system from Yamaha. This sleek package is the perfect pairing for a 4K television, upscaling content in lower resolutions while faithfully reproducing 4K video signals. MP3 tunes are equally augmented thanks to the Compressed Music Enhancer, which automatically adjusts high and low ranges to recover audio subtleties lost in the digital compression process. Finally, the powerful bass and five-speaker surround setup make each action scene or concert DVD extra dramatic and entertaining.
Dimensions
Width: 17.12" (43.5 cm)Height: 6.00" (15.2 cm)Depth: 12.37" (31.4 cm)
Shipping Dimensions
Width: 20.90" (53.1 cm)Height: 22.10" (56.1 cm)Depth: 17.70" (45.0 cm)
Weight
44.10 lbs (20.0 kg)
Key Features:
• 4K Ultra HD Full Support with 4K60p, HDR and BT.2020
• SCENE for Easy One-Touch Operation
• Compressed Music Enhancer
• HD Audio with CINEMA DSP
• OSD with Colour Icons
4K Ultra HD Full Support with 4K60p, HDR and BT.2020
This unit supports HDMI standards thanks to the transmission of 4K video at 60 frames per second. Fully enjoy the high-definition video quality of 4K without degradation.
SCENE for Easy One-Touch Operation
Four SCENE buttons make operating the receiver easier than ever. They are initially set to default settings for BD/DVD Movie Viewing, TV Viewing, CD Listening and Radio Listening. Pressing a SCENE button turns on the power, selects the input source and assigns the optimum DSP mode for that source.
Compressed Music Enhancer
When music is encoded in a digital compressed format such as MP3, frequency response suffers in the high and low ranges. Yamaha employs sophisticated digital signal processing with exclusive algorithms, enabling faithful reproduction of the original music for excellent sound quality.
HD Audio with CINEMA DSP
The receiver decodes HD audio formats, which can be enjoyed together with Yamaha’s original CINEMA DSP surround sound programs for natural and expansive sound imaging.
OSD with Colour Icons
The YHT-1840 features Yamaha’s latest on-screen display, which provides colour icons for quick identification. Menus can be viewed in English, German, French, Spanish, Russian, Italian, Japanese or Chinese. In addition, menus can be overlaid over the image.
Full Features and Specifications
Receiver (HTR-2071):
• Rated Output Power: 100 W (6 ohms, 1 kHz, 0.9 % THD, 1 ch-driven); 70 W (6 ohms, 20 Hz-20 kHz, 0.09 % THD, 2-ch driven); 135 W (6 ohms, 1 kHz, 10 % THD, 1-ch driven, JEITA)
• Dynamic Power per Channel (Front L/R): 110 / 130 / 150 W (6/4/2 ohms)
• Standby Power Consumption: 0.3 W (0.5 W in some regions)
• Dimensions: 17.13" W x 6" H x 12.38" D
• Weight: 16.3 lb.
Front and Surround Speakers (NS-B40):
• Driver: 7 cm (2-3/4") Full-Range Cone
• Input Power (Nominal/Max): 30 W / 100 W
• Sensitivity: 83 dB / 2.83 V / 1 m
• Dimensions: 4.38" W x 6.88" H x 4.63" D
• Weight: 1.3 lb./unit
Centre Speaker (NS-C40):
• Driver: 7 cm (2-3/4") Full-Range Cone
• Input Power (Nominal/Max): 30 W / 100 W
• Sensitivity: 84 dB / 2.83 V / 1 m
• Dimensions: 10.88" W x 4.38" H x 4.63" D
• Weight: 1.61 lb.
Subwoofer (NS-SWP40):
• Driver: 16 cm (6.5") Cone
• Input Power (Nominal/Max): 30 W / 100 W
• Sensitivity: 88.5 dB
• Dimensions: 11.38" W x 11.5" H x 12.38" D
• Weight: 12.8 lb.
1 year manufacturer coverage warranty
